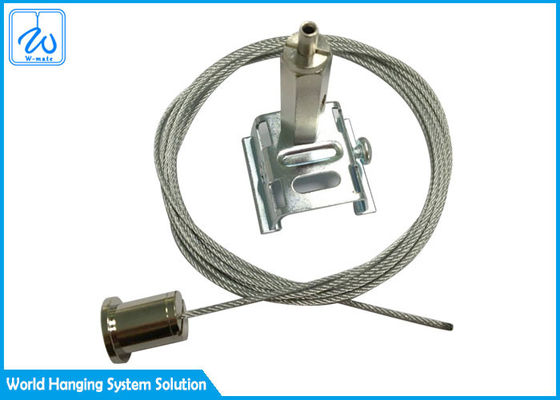

1.5mm Adjustable Drop Cable Wire Clamp Suspension Kits With Fitting
Ürün ayrıntıları:
| Menşe yeri: | Dongguan, Çin |
| Marka adı: | w-mate |
| Sertifika: | SGS |
| Model numarası: | WR220040108 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1000 adet |
|---|---|
| Fiyat: | negotiable |
| Ambalaj bilgileri: | PE torba + PP torba + karton (başka gereksinimleriniz varsa, lütfen bizimle iletişime geçin) |
| Teslim süresi: | 10-15 iş günü |
| Ödeme koşulları: | Banka havalesi, Western Union |
| Yetenek temini: | 100.000 pc/ay |
|
Detay Bilgi |
|||
| Ürün Adı: | tel halat süspansiyon aksesuarları | Malzeme: | Pirinç + Çelik |
|---|---|---|---|
| kablo çapı: | 1,5 mm veya gerektiği gibi | Uygulama: | Aydınlatma için asılı |
| Adedi: | 1000 adet | Kurşun zamanı: | Stokta yeterli malzeme varsa 7 gün |
| Vurgulamak: | Drop Suspension Cable Hanging Kit,Adjustable Suspension Wire Fittings,1.5mm Clamp Suspension Wire Light Fittings |
||
Ürün Açıklaması
Detailed Information
Feature Of wire rope suspension accesories
We have a kit ready for all your light weight hanging needs
This adjustable hook provides simple universal hanging solution.
With a clutch system the height is easily adjustable with the excess cable exiting via the back of the hook.
Simply trim once desired height is achieved.

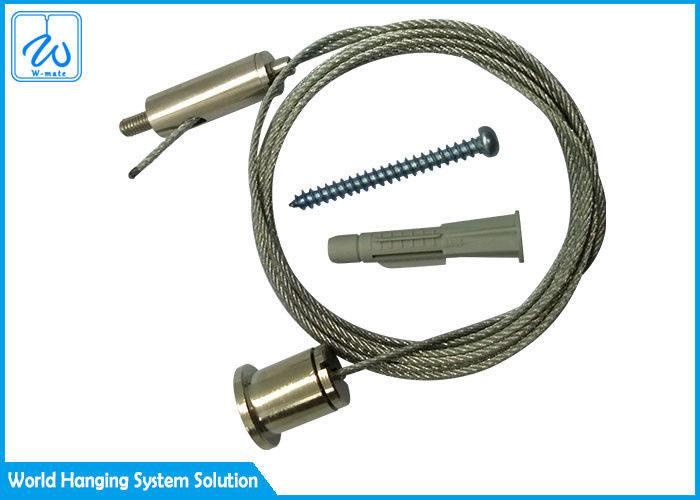

Kit Includes:
Ceiling Mount: 17mm Length x 16mm Overall Diameter x 12mm Body.
Diameter
Gripper Hook: 57mm Length x 9mm Diameter
Cable: 1.2mm Diameter; 1.5m Long
Fitting & fixing
The mount can be attached with up to an 8 gauge screw
Solutions & Ideas
Great for hanging lighter weight displays
Dimensions
Cable is 1.2mm Diameter
Supports up to 10kg
Technical Parameters of wire rope suspension accesories
| Product name | wire rope suspension accesories |
| Material | Stainless Steel |
| Diameter | 0.8-1.5mm |
| Steel wire length | 1.5m /Customized as require |
| Nylon coating | 1.0m or customer's requirements |
| End part | 7x7 or 1x19 |
| Application | hanging light suspension wire |
| Delivery Time | 7 days after receive 30% down payment |
| Sample | Free Sample Available |
| MOQ | 1000pcs |
| Certification | SGS-RoHS |
Advantages of wire rope suspension accesories
1. Efficient
The ceiling attachment is fixed to the ceiling,work with cable gripper and offer the perfect solution for the suspension system.
2. Easy installation
Installed objects can easily be adjusted vertically using cable hooks,gripper hooks,and side camps.
3. Widely appied
The ceiling attachment is ideal for hanging art,chandeliers,collectibles,cookware,panels,planters,and partitions.
Custom order information of wire rope suspension accesories
Diameter:regular or customized
Thread Size:Regular or customized
Surface Treatment:Plating Chrome or Nickel
Color:Customized
Packaging Logo:Regular or customized
Delivery time (first delivery):3-7 working days for sample orders, 15-25 days for bulk orders
Payment method:T/T is 30%-70%
Payment methods:T/T, PayPal, etc.
Shipping port: FOB Shenzhen or FOB Shanghai
Minimum order quantity:1000pcs
Customers who bought wire rope suspension accesories also bought
|
|
|
|
| Steel Wire Rope by Eyelets | Suspension Kit For Lighting Installation | Grip Lock Wire Cable Grippers | Acoustic Ceiling Suspension System |
Packaging Information
500 pieces in a plastic bag, and then into a carton.
By Air: 12kg per carton.
By Sea: 25kg per carton.
Using European standard wooden pallets, one pallet can hold up to 700kg.
International Shipping Around the World
All the Cable Gripper can be shipped worldwide by sea, by air or by international express logistics via DHL, FEDEX, UPS. You are welcome to get a free quotation by filling up the form with name, email, detailed address, product and requirements, we will shortly contact you with the full information including the most suitable delivery method (fast, secure, discreet) and freight.
FAQ:
Will the wire rope rust if we use it in a moist environment or outside?
We have stainless steel wire rope which will not rust when used in moist environment or outdoors. We can provide salt spray test report.
Can your company coat the wires in plastic?
We can coat the wire in transparent/black PVC/PA.
What' s the difference between galvanized and stainless cable?
Both Stainless Steel and Galvanized Aircraft Cable have approximately the same break strength. Galvanized cable is less expensive and is used in 90% of all lighting applications.
